Deep groove ball bearings are integral components in a multitude of mechanical systems, revered for their versatility, reliability, and efficiency in handling both radial and axial loads. These bearings are pivotal in industries ranging from automotive to aerospace, contributing significantly to the smooth operation of machinery. A critical aspect in the application of any bearing is the consideration of preload—a method used to enhance performance characteristics by eliminating internal clearance. This raises an essential question for engineers and designers: Do deep groove ball bearings need preload? Addressing this query requires an in-depth exploration of bearing mechanics, the role of preload, and its impact on the functionality and longevity of bearings. This article provides a comprehensive analysis, delving into theoretical principles, practical applications, and expert insights. For an extensive range of options and detailed specifications on these bearings, visit the Deep groove ball bearing product page.
Preload is a deliberately applied axial or radial load to a bearing, intended to remove internal clearances and induce elastic deformation between the rolling elements and raceways. This process enhances the rigidity and positional accuracy of the bearing assembly, crucial in applications requiring high precision and minimal deflection under load.
The primary objectives of applying preload are:
Eliminating internal clearance to improve stiffness and accuracy.
Reducing vibration and noise levels in the bearing operation.
Preventing skidding of rolling elements under light loads or high speeds.
Enhancing the distribution of load among rolling elements to extend bearing life.
Preloading must be carefully controlled, as excessive preload can lead to increased friction, higher operating temperatures, and reduced bearing life due to elevated stress levels.
Several methods exist to apply preload to bearings, each suited to different applications:
Solid Preload: Achieved through precise machining and assembly techniques, solid preload uses accurately sized spacers or shoulders to set a fixed preload value. It provides high rigidity but lacks the ability to accommodate thermal expansion.
Spring Preload: Incorporates springs to apply preload, allowing for some flexibility in the bearing assembly. This method accommodates differential thermal expansion and maintains preload under varying conditions.
Adjustable Preload: Enables fine-tuning of preload during assembly or maintenance using threaded components or shims, offering adaptability to specific operational requirements.

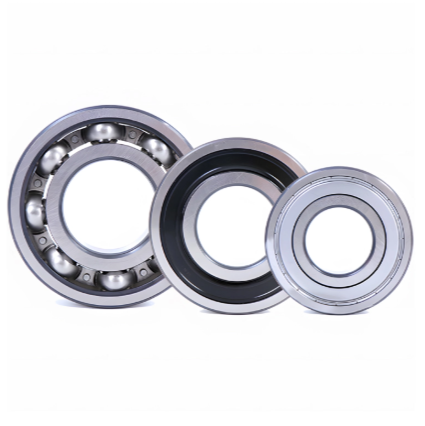

Deep groove ball bearings are characterized by their simple design, durability, and ability to operate at high speeds. They consist of an inner ring, an outer ring, a cage, and a set of balls. The deep raceway grooves on both the inner and outer rings allow them to support radial loads and moderate axial loads in both directions.
These bearings are preferred due to:
Versatility: Suitable for various applications, including electric motors, gearboxes, and pumps.
High-Speed Capability: Low friction design allows for efficient operation at high rotational speeds.
Maintenance-Friendly: Simple design facilitates easy installation and replacement.
Cost-Effectiveness: Mass production and standardization make them economically viable for large-scale applications.
Understanding these characteristics is essential when considering the need for preload in specific applications involving deep groove ball bearings.
The necessity of preload in deep groove ball bearings is not a definitive requirement but depends on application-specific factors. In standard applications, these bearings are designed to operate with a slight internal clearance, accommodating thermal expansion and misalignment. However, in high-precision or high-speed applications, preload may be necessary to enhance performance.
Preload is advantageous in situations where:
High Positional Accuracy is Required: Eliminating internal clearance improves the stiffness and accuracy of the bearing assembly.
Vibration and Noise Reduction are Critical: Preload minimizes the movement of rolling elements, reducing noise and vibration in sensitive equipment.
High-Speed Operation: Preloading prevents skidding of balls due to centrifugal forces in high-speed applications.
Axial Load Control: In applications where axial play must be tightly controlled, such as precision instruments.
Despite the benefits, preload introduces certain risks:
Increased Friction and Heat: Preload raises contact stresses, leading to higher friction and potential overheating.
Reduced Bearing Life: Excessive preload can accelerate wear and fatigue, shortening the bearing's service life.
Assembly Challenges: Achieving precise preload requires meticulous assembly procedures, increasing complexity.
Sensitivity to Temperature Changes: Thermal expansion can alter preload levels, necessitating careful material selection and design considerations.
Determining the appropriate preload involves complex calculations, balancing factors like load conditions, operating speeds, material properties, and thermal effects. Empirical formulas and manufacturer guidelines serve as essential tools in this process.
The calculation typically involves:
Determining Axial and Radial Loads: Assessing operational loads to ensure the preload is sufficient without overloading the bearing.
Considering Elastic Deformation: Calculating the elastic flattening between the balls and raceways under preload conditions.
Analyzing Thermal Expansion: Evaluating temperature effects on preload levels due to differences in material expansion coefficients.
Using Safety Factors: Applying safety margins to account for uncertainties in operating conditions.
Advanced software and simulation tools can assist in modeling these factors more accurately, leading to optimal preload values.
Implementing preload requires precision engineering:
Controlled Torque Assembly: Using torque wrenches and calibrated equipment to ensure accurate preload application.
Use of Preload Springs: Selecting appropriate springs to maintain consistent preload under variable conditions.
Shim Adjustment: Fine-tuning preload by adding or removing shims in the assembly.
Monitoring Tools: Incorporating sensors to monitor preload levels during operation for critical applications.
Material selection and bearing design significantly influence preload application and effectiveness. Matching the thermal expansion coefficients of bearing components can mitigate preload variations due to temperature changes. Advanced materials like hybrid ceramics offer lower thermal expansion and can enhance performance under preload conditions.
Common materials include:
Chrome Steel: Offers high hardness and fatigue resistance, suitable for general applications.
Stainless Steel: Provides corrosion resistance for harsh environments.
Ceramic Balls: Reduce weight and friction, beneficial in high-speed or temperature-sensitive applications.
Selecting the appropriate material aligns with preload requirements and operational demands, balancing performance and cost considerations.
Practical examples illustrate the impact of preload on deep groove ball bearing performance:
In CNC machines, bearings preloaded to eliminate clearance enhance the rigidity and accuracy of the spindle, directly affecting machining precision and surface finish quality. Manufacturers often employ adjustable preload mechanisms to fine-tune performance during maintenance.
Aerospace systems demand high reliability and precision. Preloaded bearings are used in control systems and gyroscopes, where motion accuracy and resistance to vibration are critical. The use of advanced materials and precise preload application extends bearing life under extreme operating conditions.
In high-performance automotive transmissions, preloading deep groove ball bearings can improve gear alignment and reduce noise. However, careful balance is essential to prevent increased friction and wear, which could decrease efficiency and component longevity.
Industry experts and researchers have extensively studied the effects of preload on bearing performance:
Dr. Emily Johnson, a leading researcher at the National Bearing Institute, states, "The application of preload in deep groove ball bearings is a nuanced decision. While it can enhance precision and stiffness, it requires meticulous design and implementation to avoid increasing friction and reducing bearing life."
Research published in the Journal of Mechanical Engineering indicated that optimal preload could extend bearing life by evenly distributing loads among rolling elements. Conversely, the study warned that excessive preload accelerates fatigue failure due to heightened contact stresses.
A case study by Shandong Yunfan Precision Bearing Co., Ltd. demonstrated that implementing adjustable spring preload in a high-speed motor application reduced vibration levels by 15% and improved operational stability. The company's expertise in bearing customization allowed for precise preload adjustments tailored to the client's specific needs.
To effectively utilize preload in deep groove ball bearings, consider the following guidelines:
Consult with Manufacturers: Engage with bearing manufacturers like Shandong Yunfan Precision Bearing Co., Ltd. to leverage their expertise in material selection and preload application.
Precise Engineering: Employ accurate calculation methods and simulation tools to determine optimal preload values.
Controlled Assembly: Implement strict assembly protocols using calibrated equipment to ensure preload accuracy.
Monitoring and Maintenance: Regularly inspect bearing assemblies for signs of excessive wear or heat generation, adjusting preload as necessary.
Material Compatibility: Choose bearing and assembly materials with compatible thermal expansion properties to maintain preload consistency.
By adhering to these practices, engineers can enhance the performance and reliability of their mechanical systems, capitalizing on the benefits of preload without incurring detrimental effects.
Advancements in bearing technology continue to refine preload application methods:
Modern systems incorporate sensors and actuators to actively adjust preload in response to operational conditions. Such systems optimize bearing performance in real-time, adapting to changes in load, speed, and temperature.
The use of advanced ceramics and specialty coatings reduces friction and wear under preload conditions. These materials can withstand higher stresses and temperatures, expanding the applicability of preloaded bearings.
Companies like Shandong Yunfan Precision Bearing Co., Ltd. offer customized bearing solutions tailored to specific preload requirements. By providing bespoke designs and expert consultation, they address unique challenges faced by clients in various industries.
For customized bearing needs or to explore a wide range of standard options, consider visiting the Deep groove ball bearing catalog offered by Shandong Yunfan Precision Bearing Co., Ltd.
Determining whether to apply preload to deep groove ball bearings is a complex decision that hinges on specific application requirements. Preload can significantly enhance bearing performance in terms of rigidity, accuracy, and vibration reduction, which is invaluable in precision and high-speed applications. However, it introduces additional complexities, including potential increases in friction, heat generation, and stress within the bearing assembly. A thorough understanding of bearing mechanics, coupled with meticulous engineering and adherence to best practices, is essential to successfully implementing preload.
Collaboration with experienced bearing manufacturers, such as Shandong Yunfan Precision Bearing Co., Ltd., can provide access to specialized knowledge and customized solutions. Their expertise in producing high-quality Deep groove ball bearing products and services ensures that clients receive bearings optimized for their specific needs, whether standard or custom-designed.
In conclusion, while deep groove ball bearings do not inherently require preload, its application can offer significant advantages in certain scenarios. Engineers and designers must carefully evaluate their system's demands, considering both the benefits and potential drawbacks. Through informed decision-making and collaboration with industry experts, the optimal performance of mechanical systems utilizing deep groove ball bearings can be achieved.
