Press-in and bolt-on wheel bearings differ mainly in their mounting methods, component structures, and replacement procedures. Press-in wheel bearings are installed into a housing using controlled mechanical pressure, while bolt-on wheel bearing units are typically supplied as integrated hub assemblies secured with mounting bolts.

Both designs support smooth wheel rotation and carry loads generated during driving, braking, and cornering. However, they are not universally interchangeable, and neither design is automatically better for every vehicle.

Understanding press-in vs. bolt-on wheel bearings helps vehicle owners, automotive repair professionals, and parts distributors identify the correct replacement and avoid unnecessary installation problems.

What Is a Press-In Wheel Bearing?

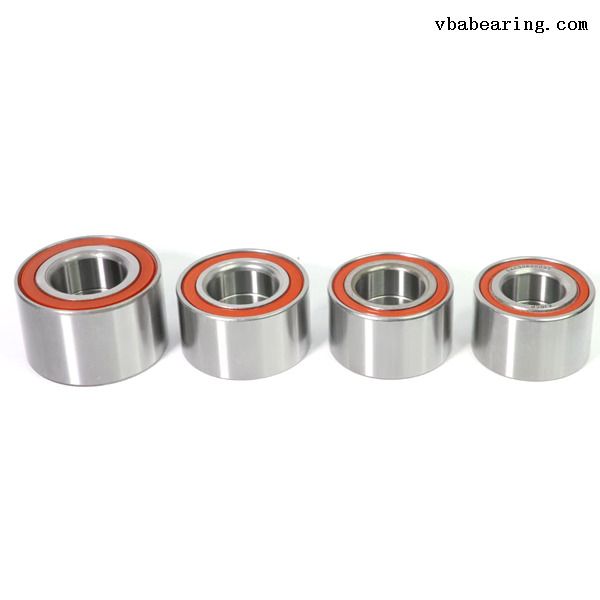

A press-in wheel bearing is a bearing installed into a steering knuckle or bearing housing using an interference fit. It typically requires a hydraulic press or specialized installation tools to ensure accurate positioning without damaging internal bearing components.

Press-in wheel bearings are commonly used in automotive wheel assemblies where the bearing and wheel hub are separate components. The bearing is fitted into the knuckle or housing, and the hub is subsequently installed according to the vehicle's specified procedure.

Many press-in designs use double row angular contact ball bearings capable of supporting combined radial and axial loads. Their construction allows them to handle forces generated by vehicle weight, cornering, and braking.

Proper installation is particularly important because applying pressure through the wrong bearing ring can transfer excessive force through the rolling elements. This may damage the bearing before the vehicle returns to service.

Main Characteristics of Press-In Bearings

Press-in bearings generally have a compact construction and can be replaced individually in applications designed for separate bearing servicing.

Depending on the assembly, retaining rings or other locating features may secure the bearing within its housing. The installation procedure must follow the specified fit and component arrangement.

Their main advantage is that the bearing may be replaced without purchasing an entire wheel hub assembly, provided the surrounding components remain serviceable.

However, the repair usually requires appropriate pressing equipment and careful installation procedures.

What Is a Bolt-On Wheel Bearing Assembly?

A bolt-on wheel bearing assembly is an integrated wheel hub unit secured to the vehicle's steering knuckle or suspension mounting structure using bolts. It normally combines the bearing with a hub flange and other wheel mounting features.

Unlike a separate press-in bearing, a bolt-on assembly is generally supplied as a complete unit. This reduces the number of individual bearing installation operations required during replacement.

The assembly may include wheel studs, a mounting flange, seals, and features associated with wheel speed sensing systems. The exact configuration depends on the vehicle application.

Bolt-on hub assemblies are used in various passenger vehicles and light commercial vehicles. Their design allows the complete unit to be installed or removed without separately pressing the internal bearing into a housing.

Main Characteristics of Bolt-On Assemblies

The bearing and hub components are integrated into one replacement unit, with the internal bearing arrangement typically established during manufacturing.

During installation, the assembly is positioned against the specified mounting surface and secured with mounting bolts.

Correct fastener tightening, mounting surface preparation, and axle connection procedures remain essential.

Although bolt-on designs can simplify certain replacement operations, access restrictions or corrosion may still make removal difficult.

Press-In vs. Bolt-On Wheel Bearings: What Are the Key Differences?

The main difference is installation: press-in bearings require controlled fitting into a housing, while bolt-on bearing assemblies attach as complete units using mounting fasteners. Their replacement costs, required tools, and structural configurations may also differ.

Press-in bearings normally function as individual components within a larger wheel assembly. Their installation relies on accurately matched bearing and housing dimensions.

Bolt-on assemblies incorporate additional structural elements, including mounting flanges and wheel attachment features. They are typically replaced as complete units rather than by removing the internal bearing separately.

The correct design is determined by the vehicle's original wheel end configuration.

Comparison of Press-In and Bolt-On Bearings

Which Type Is Easier to Install?

Bolt-on assemblies often require fewer bearing-specific installation operations because the bearing is already integrated into the hub unit.

Press-in bearings generally require more precise handling during removal and installation. Incorrect force application can damage the bearing or surrounding components.

However, the actual difficulty depends on vehicle design, component accessibility, corrosion, and available equipment.

Installation convenience alone should not determine the replacement choice.

Can You Replace a Press-In Bearing with a Bolt-On Assembly?

A press-in wheel bearing cannot normally be replaced directly with a bolt-on hub assembly unless the vehicle's wheel end system is specifically designed or approved for that configuration. The two designs use different mounting structures.

Press-in bearings are designed to fit within a specified housing. Their external dimensions and retention methods correspond to the vehicle's original suspension and hub arrangement.

Bolt-on assemblies require suitable mounting surfaces and fastener locations. A vehicle originally designed for a press-in bearing may not have the necessary interfaces for a bolt-on unit.

Even when bearing dimensions are similar, differences in flange geometry, axle connections, and wheel positioning can prevent interchangeability.

For replacement applications, buyers should follow the original equipment specifications rather than selecting an alternative based on installation convenience.

How Do You Identify Which Wheel Bearing Your Vehicle Needs?

The most reliable method is to check the original part number, vehicle application, and wheel hub construction. A parts catalog or service manual can confirm whether the vehicle requires a separate press-in bearing or a complete bolt-on assembly.

Begin by identifying the vehicle model, production year, drivetrain configuration, and required axle position.

Front and rear wheel bearings may use different mounting arrangements, even on the same vehicle. Some vehicles use press-in bearings at one axle and integrated hub assemblies at the other.

When selecting a separate bearing, verify the inner diameter, outer diameter, width, bearing type, and sealing configuration.

For a bolt-on assembly, additional specifications such as bolt patterns, mounting flange dimensions, axle splines, and ABS compatibility may be required.

What Should Buyers Verify Before Ordering?

1.Original equipment or approved replacement part number.

2.Front or rear installation position.

3.Press-in bearing or bolt-on hub assembly design.

4.Bearing dimensions and mounting requirements.

5.ABS encoder or sensor compatibility where applicable.

6.Vehicle application and drivetrain configuration.

For automotive parts distributors, these details help ensure that replacement products match the intended applications.

Which Type Is More Suitable for Replacement and Wholesale Purchasing?

The better choice is the bearing configuration specified for the vehicle. Press-in bearings can be economical where individual replacement is supported, while bolt-on hub assemblies provide an integrated replacement solution for compatible applications.

For repair professionals, a press-in bearing may reduce the cost of the replacement component when the existing hub remains suitable for reuse. However, specialized tools and additional labor must be considered.

Bolt-on assemblies may simplify the replacement process by combining several components into one unit. Their purchase cost may be higher in some applications, although total repair cost depends on labor and vehicle design.

For B2B distributors, both product types serve important aftermarket demand. Press-in bearings can be organized by dimensions and replacement references, while bolt-on hub assemblies require detailed vehicle application information.

When requesting quotations, buyers should provide relevant part numbers, technical specifications, expected quantities, and packaging requirements.

Accurate product identification supports efficient purchasing, inventory management, and customer service.

Conclusion

Press-in and bolt-on wheel bearings perform the same essential rotational support function but differ in mounting structure and replacement methods. Press-in bearings are fitted into a housing, while bolt-on bearing assemblies are secured as integrated hub units.

Neither design is universally superior. The correct selection depends on the vehicle's original engineering specifications, installation requirements, and component compatibility.

For automotive parts distributors and wholesale buyers, understanding these differences helps identify suitable replacement products and improve purchasing accuracy.
