Auto bearings, or automotive bearings, are precision-engineered components that play a fundamental role in vehicle operation. Found throughout a car’s chassis, engine, transmission, and wheels, these small yet powerful devices allow for controlled motion and reduced friction between moving parts. Without auto bearings, modern vehicles would simply not function efficiently—or safely.
From the moment a car begins to roll to when it stops, auto bearings are working silently behind the scenes. They absorb radial and axial loads, ensuring the smooth rotation of wheels and the seamless operation of the engine and driveline systems. The most common types include wheel hub bearings, tapered roller bearings, clutch release bearings, and engine bearings. Each serves a distinct purpose but collectively contributes to the same goal: maintaining motion, reducing wear, and extending vehicle life.
Because these components are hidden within vehicle systems, their role often goes unnoticed—until failure occurs. That’s when issues like strange noises, vibration, reduced performance, or even dangerous driving conditions emerge. This article will walk you through everything you need to know about auto bearings: their types, functions, materials, design, and what to watch out for.
A Closer Look at the Main Bearing Categories
There’s no one-size-fits-all when it comes to auto bearings. Depending on the application and load requirements, different types of bearings are employed. Here's an overview of the most essential categories:

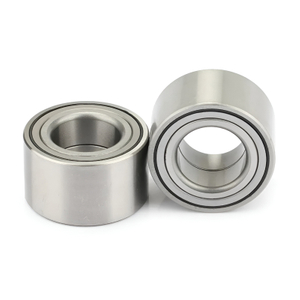

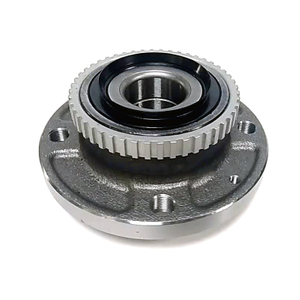

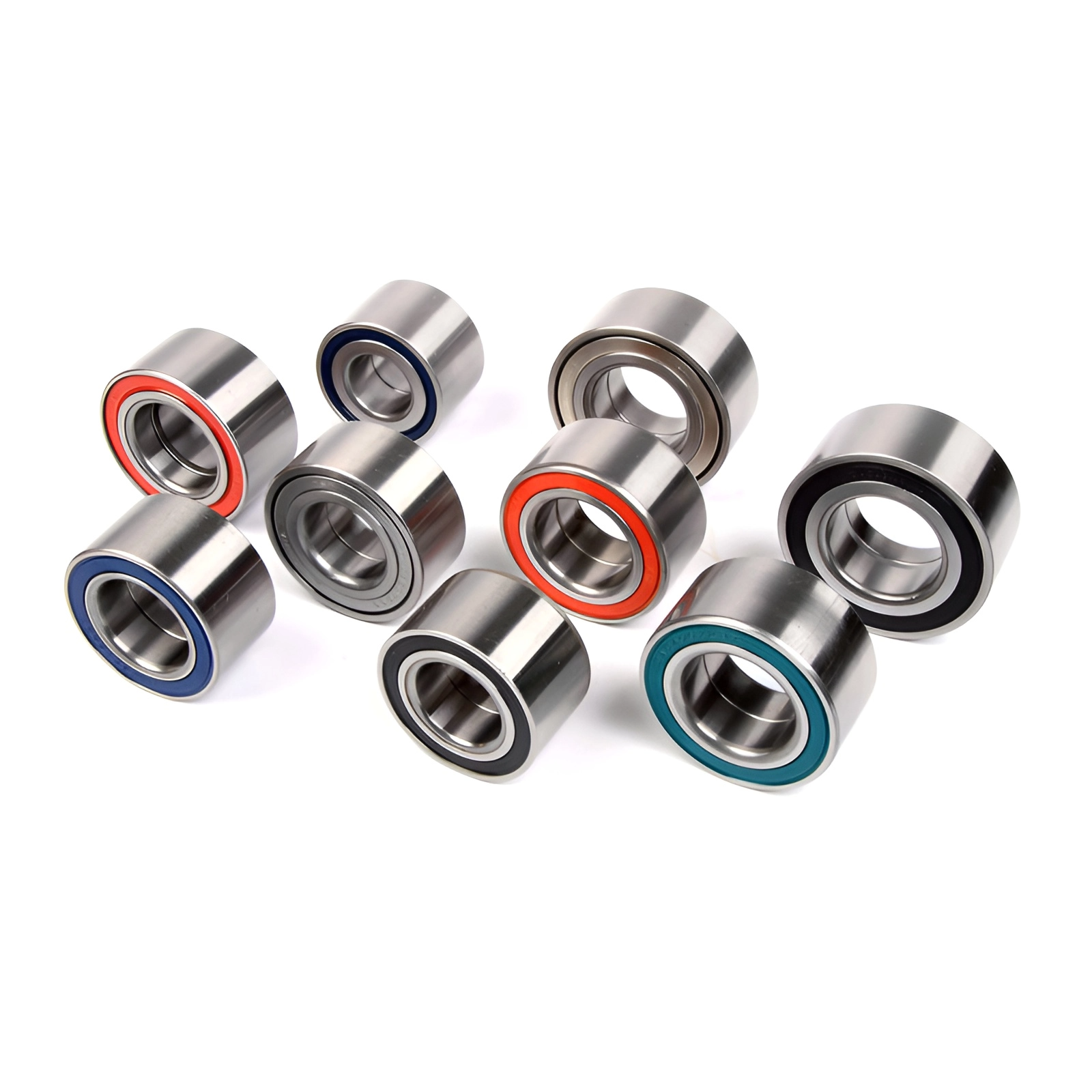

Found in the hub assembly, these bearings allow wheels to rotate with minimal friction. Integrated with ABS sensors in modern vehicles, they also help with vehicle stability and braking control.
These are primarily used in wheel hubs and gearboxes due to their ability to handle combined radial and axial loads. Their conical shape gives them higher load capacity, making them ideal for heavy-duty applications.
These versatile bearings can be found in alternators, starters, and fans. They are excellent for reducing friction and supporting both moderate radial and axial loads in lighter-duty applications.

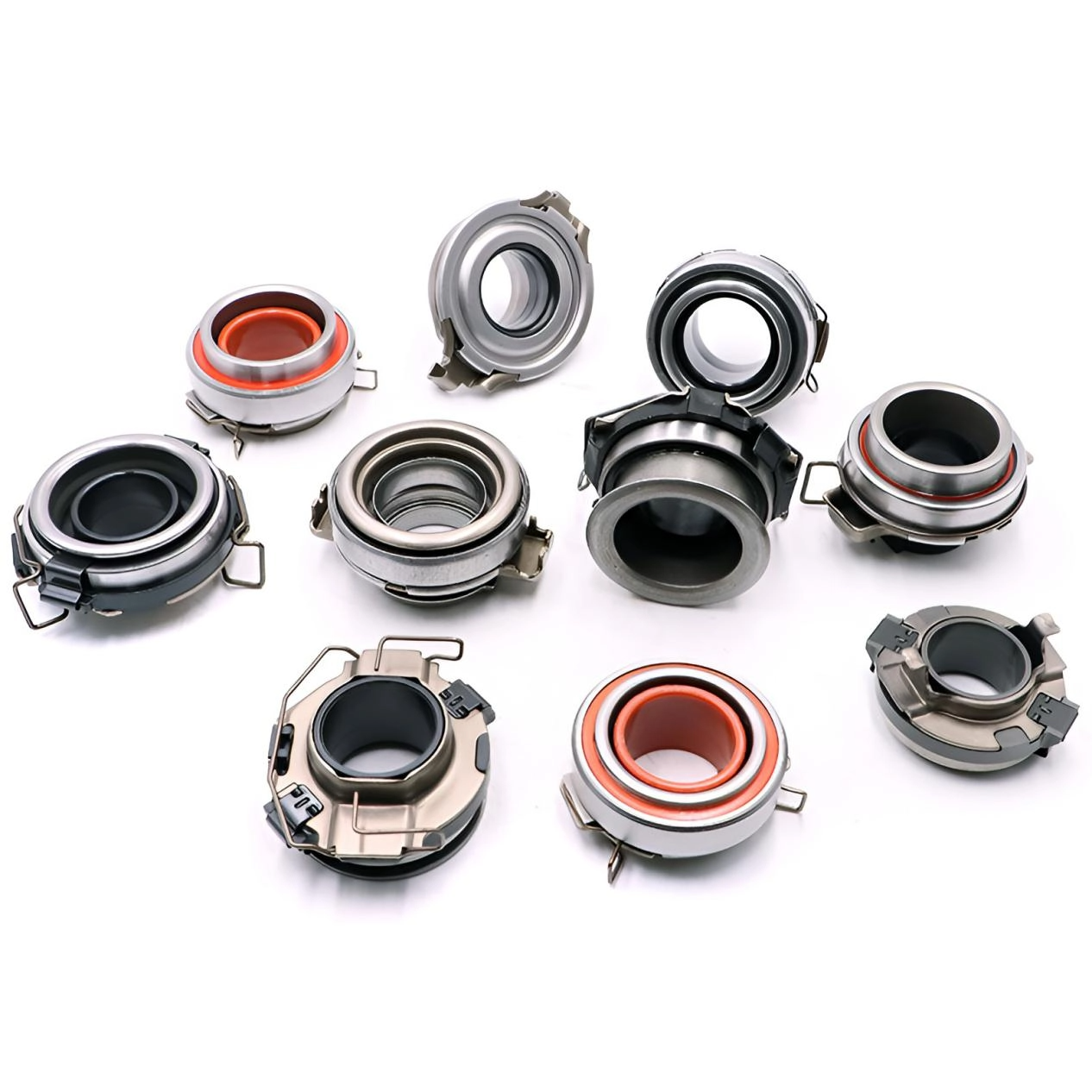

Located between the clutch and transmission, these bearings help disengage the engine from the wheels, enabling smooth gear changes.
These include main and rod bearings that support the crankshaft and connecting rods. They’re built to withstand extreme heat, pressure, and rotation inside the combustion engine.
The Mechanics Behind the Motion
At their core, auto bearings are designed to reduce friction between two moving surfaces—one usually rotating and the other stationary. This is accomplished by rolling elements (balls or rollers) placed between two metal rings called races. These elements roll instead of slide, significantly reducing friction.
In automotive systems, bearings are often sealed to protect against contaminants like dust, dirt, and water. They are also pre-lubricated with grease to extend their lifespan. As the vehicle moves, the bearing absorbs shocks and vibrations while allowing continuous movement under varying loads and speeds.
Take, for example, a wheel bearing. As you steer, brake, or accelerate, it adapts to directional forces and load shifts. The precision with which a bearing performs directly influences steering responsiveness, braking efficiency, and tire wear. That’s why high-quality bearings are critical—not just for performance but for safety.
Below is a simplified comparison table of common auto bearing types and their typical applications:
| Bearing Type | Primary Function | Common Location | Load Type |
|---|---|---|---|
| Wheel Hub Bearing | Enables wheel rotation | Wheel hub | Radial & Axial |
| Tapered Roller Bearing | Withstands combined loads | Gearboxes, axles | Radial & Axial |
| Ball Bearing | Reduces friction in rotating assemblies | Alternators, fans | Radial & Light Axial |
| Clutch Release Bearing | Ensures smooth clutch engagement | Between clutch and transmission | Axial |
| Engine Bearing | Supports crankshaft rotation | Inside engine block | Radial |
What Are They Made Of and Why It Matters
Auto bearings are manufactured using high-grade materials engineered for strength, durability, and corrosion resistance. The most common materials include:
Chrome Steel (SAE 52100): Known for its hardness and wear resistance.
Stainless Steel: Offers better corrosion resistance, ideal for harsh environments.
Ceramics: Used in high-performance applications, offering high-speed capabilities and low heat generation.
The manufacturing process involves forging, turning, heat treatment, grinding, and super-finishing. High precision is essential—any deviation can result in vibrations, noise, and reduced lifespan. Modern bearing manufacturers also use automated inspection and quality control systems to ensure zero defects and consistent performance.
Bearings are often sealed with rubber or metal shields and filled with high-temperature grease to prevent lubrication loss and contamination. Some are designed to be maintenance-free, while others may require periodic re-lubrication depending on usage and load.
How to Recognize When a Replacement Is Needed
Bearing failure is one of the most common causes of vehicle downtime. Identifying early warning signs can save you from costly repairs and potential accidents. Here are the top indicators:
Unusual Noises: A humming, grinding, or growling noise when driving may indicate worn or damaged wheel bearings.
Excessive Vibration: If you feel vibrations in the steering wheel or under your feet, it could be a failing bearing affecting wheel balance.
ABS Warning Light: Many modern wheel bearings are integrated with ABS sensors. A fault here can trigger the warning light.
Uneven Tire Wear: Bad bearings can cause wheels to wobble, leading to irregular tire wear patterns.
Poor Handling or Steering Play: Looseness in the steering system can be linked to degraded bearing performance.
Ignoring these signs can result in the bearing seizing, damaging surrounding components like the hub or axle—leading to extensive and expensive repairs.
Clearing Up the Most Common Concerns
Typically, wheel bearings can last between 85,000 to 100,000 miles, but this varies with driving habits, road conditions, and bearing quality.
Technically yes, but it’s strongly discouraged. A failing bearing can lock up the wheel or damage the axle, risking your safety.
No. Bearings vary based on vehicle type, load capacity, function, and operating conditions. Always refer to your car’s specifications.
Most auto bearings are not repairable and should be replaced as a whole unit to ensure proper function and safety.
Common causes include improper installation, poor lubrication, water ingress, overloading, or low-quality materials.
Though often overlooked, auto bearings are integral to a vehicle’s performance, safety, and longevity. They manage the invisible balance between friction and motion, ensuring your vehicle runs quietly, smoothly, and reliably. Understanding how they work—and knowing when they’re failing—can make the difference between a smooth ride and a breakdown.
As vehicle technology evolves, so do the demands on these critical components. Modern bearings are now smarter, longer-lasting, and more precisely engineered than ever before. Whether you're a driver, mechanic, or automotive supplier, investing in high-quality auto bearings is not just about part replacement—it’s about driving peace of mind.
