When designing complex machinery, engineers know every moving part demands precise consideration. Moving beyond basic definitions helps us understand how ball bearings impact overall system reliability, operational efficiency, and critical project budgets. Simply picking a standard component off a shelf is no longer sufficient. Choosing the wrong bearing type or material for a specific application almost always leads to premature mechanical failure. Such specification errors inevitably cause excessive machine downtime and severely inflate long-term maintenance expenses. To prevent these costly failures, you must understand the nuanced capabilities of each bearing variant. This guide carefully breaks down how these crucial components are deployed across multiple deanding industries. We will explore the structural trade-offs of different designs and outline the exact evaluation criteria necessary for success. Read on to master specifying the right mechanical component for your high-stakes applications, ensuring optimal performance from day one.
Table of Contents
Primary Function: Ball bearings reduce rotational friction and support radial and axial loads, though they are optimal for high-speed, lighter-load applications compared to roller bearings.
Application Dictates Type: Deep groove, angular contact, and thrust bearings serve strictly different load vectors and RPM requirements.
Material is a Compliance Issue: Selection between chrome steel, stainless, and ceramic depends heavily on environmental realities (corrosion, temperature, electrical arcing) and industry regulations (e.g., FDA, aerospace standards).
Lifecycle Value over Unit Cost: Premature failure is almost always linked to incorrect specification or lubrication failure, making precise evaluation critical during the design and procurement stage.
Modern mechanical systems require the seamless transition of kinetic energy. They must accomplish this task while minimizing parasitic loss. Friction acts as the primary enemy of mechanical efficiency. It generates unwanted heat and degrades internal components rapidly. Engineers use bearings to solve this exact problem. These components allow shafts to rotate freely. They absorb operational forces and keep machinery running smoothly over long periods.
The core advantage of these components lies in their rolling spheroid design. Spheres provide a very low contact area compared to cylinders or sleeves. Roller bearings use line contact to support massive weights. In contrast, spherical rolling elements use point contact. This structural difference drastically reduces rolling resistance. Less resistance means lower operating temperatures and higher mechanical efficiency. You choose them when minimizing friction matters most.
Engineers typically specify these components based on strict success criteria. They excel when an application demands high rotational speeds (RPM). They also shine when systems require extremely tight precision tolerances. You will find them in electric motors, power tools, and high-speed spindles. They perform best under light to moderate loads. Brute-force load capacities usually require different bearing designs entirely.
However, we must transparently acknowledge their structural limitations. Ball bearings remain highly susceptible to sudden shock loads. Because they rely on tiny point contacts, intense impacts can easily dent the raceways. This deformation is known as true brinelling. If you specify them beyond their static load ratings, they will fail prematurely. You must always balance speed requirements against anticipated load spikes.
Common Mistake: Do not swap a roller bearing for a ball bearing simply to increase shaft RPM. You must calculate the exact radial load limits first. Ignoring load limits guarantees rapid raceway deformation.
Different industries push mechanical components to their absolute limits. Understanding how specific sectors utilize these parts reveals their true versatility. We can map their physical features directly to critical performance outcomes. Here is how various high-stakes fields rely on precision rotation.
The aerospace sector leaves no room for mechanical error. Engineers deploy these components inside turbine engines, guidance systems, and landing gear mechanisms. Aerospace applications evaluate parts on extreme dimensions. Components must survive severe temperature fluctuations during flight. They must also operate flawlessly in vacuum environments. Furthermore, aircraft design demands strict weight-to-performance ratios. Every gram matters, making lightweight precision critical.
Automotive manufacturing relies heavily on reliable rotational parts. You will find them inside transmissions, engine alternators, and wheel hubs. Evaluation dimensions here focus heavily on endurance. Parts must possess high cyclical fatigue thresholds to survive years of driving. Manufacturers also require mass-production scalability. Components must resist harsh environmental contaminants. Road grit, moisture, and road salt constantly threaten bearing integrity.
Factories depend on automated systems to maintain production schedules. Bearings support electric motors, conveyor rollers, and CNC machine spindles. Evaluators look for components capable of surviving continuous duty cycles. Vibration minimization is another critical success factor. Excessive vibration ruins machined parts and destroys motor housings. Plant managers demand predictable maintenance intervals. Predictability helps them prevent catastrophic line downtime.
Sanitation and safety drive engineering decisions in these sectors. Applications include blood centrifuges, high-speed dental drills, and automated food packaging lines. Evaluation dimensions differ wildly from heavy industry. Components require strict washdown compatibility. They must tolerate harsh chemical cleaners daily. Food and medical systems often mandate FDA-compliant lubrication. They also require absolute corrosion resistance, typically forcing the use of stainless steel or ceramic materials.
Industry | Key Applications | Primary Evaluation Criteria |
|---|---|---|
Aerospace | Turbines, Guidance Systems | Temperature extremes, weight ratios, vacuums |
Automotive | Wheel hubs, Alternators | Fatigue life, contamination resistance, scale |
Industrial | CNC spindles, Conveyors | Duty cycles, vibration control, predictability |
Medical/Food | Centrifuges, Packaging | Washdown tolerance, FDA compliance, corrosion |
Selecting the correct structural design ensures long-term operational success. Different internal geometries serve vastly different physical forces. You must match the bearing architecture strictly to your load vectors. Here are the four primary solution categories you will encounter.
These represent the most versatile industry standard available today. Engineers use them everywhere. They perform best in applications needing moderate radial loads and very low axial loads. They offer cost-effective scalability for high-volume manufacturing. You see them universally applied inside standard electric motors, household appliances, and light conveyor systems. Their simple design makes them exceptionally reliable.
These feature highly engineered, asymmetrical raceways. The inner and outer rings are offset relative to each other. They perform beautifully when applications require simultaneous high-speed radial and axial loads. Thrust forces push the balls firmly into the angled raceway. You will find them extensively used in machine tool spindles. Engineers often pair them together to handle bidirectional thrust loads safely.
These components are designed purely for axial loads. They sit flat and support forces pushing parallel to the shaft. However, they absolutely cannot tolerate radial forces. If you apply side-loads to them, they will break apart quickly. They are ideal for low-speed, high-axial weight applications. Industrial rotary tables and fluid control valves frequently utilize this specific design.
This design features two distinct rows of balls. They share a single spherical outer raceway. This unique geometry allows the inner ring to pivot slightly. It represents the best solution where shaft deflection is a known risk. They also forgive slight mounting misalignments during installation. You use them when structural rigidity is difficult to achieve across long, flexible shafts.
Load Capacity Chart by Bearing Type | |||
Bearing Type | Radial Load Capability | Axial Load Capability | Optimal RPM Range |
|---|---|---|---|
Deep Groove | Moderate to High | Low | Very High |
Angular Contact | Moderate | Moderate to High (Unidirectional) | High |
Thrust | None | High | Low to Moderate |
Self-Aligning | Moderate | Low | Moderate to High |
Physical architecture only solves half the engineering puzzle. Material selection dictates environmental survivability. Specifying the wrong metallurgy invites rapid chemical breakdown. You must evaluate the operating environment accurately before choosing a material base. Here is the decision framework for material tolerance.
52100 Chrome Steel: This material serves as the universal baseline for standard industrial use. It provides excellent fatigue life and high load capacity. It is also highly cost-effective. However, it remains highly vulnerable to moisture. It will rust quickly if exposed to water or corrosive environments.
440C Stainless Steel: Engineers turn to this material for corrosive environments. It resists water, mild chemicals, and high humidity effectively. Trade-off: Stainless steel is softer than chrome steel. It typically offers roughly 20% less load capacity. You must account for this reduction during the design phase.
Ceramic (Hybrid & Full): Ceramic components solve complex electrical and thermal problems. They provide natural electrical insulation, preventing damaging motor arcing. They also tolerate extreme speeds and generate minimal heat. Trade-off: They carry a high upfront cost. They are also notoriously brittle under shock loads. Despite this, they offer the lowest friction and longest life in specialized applications.

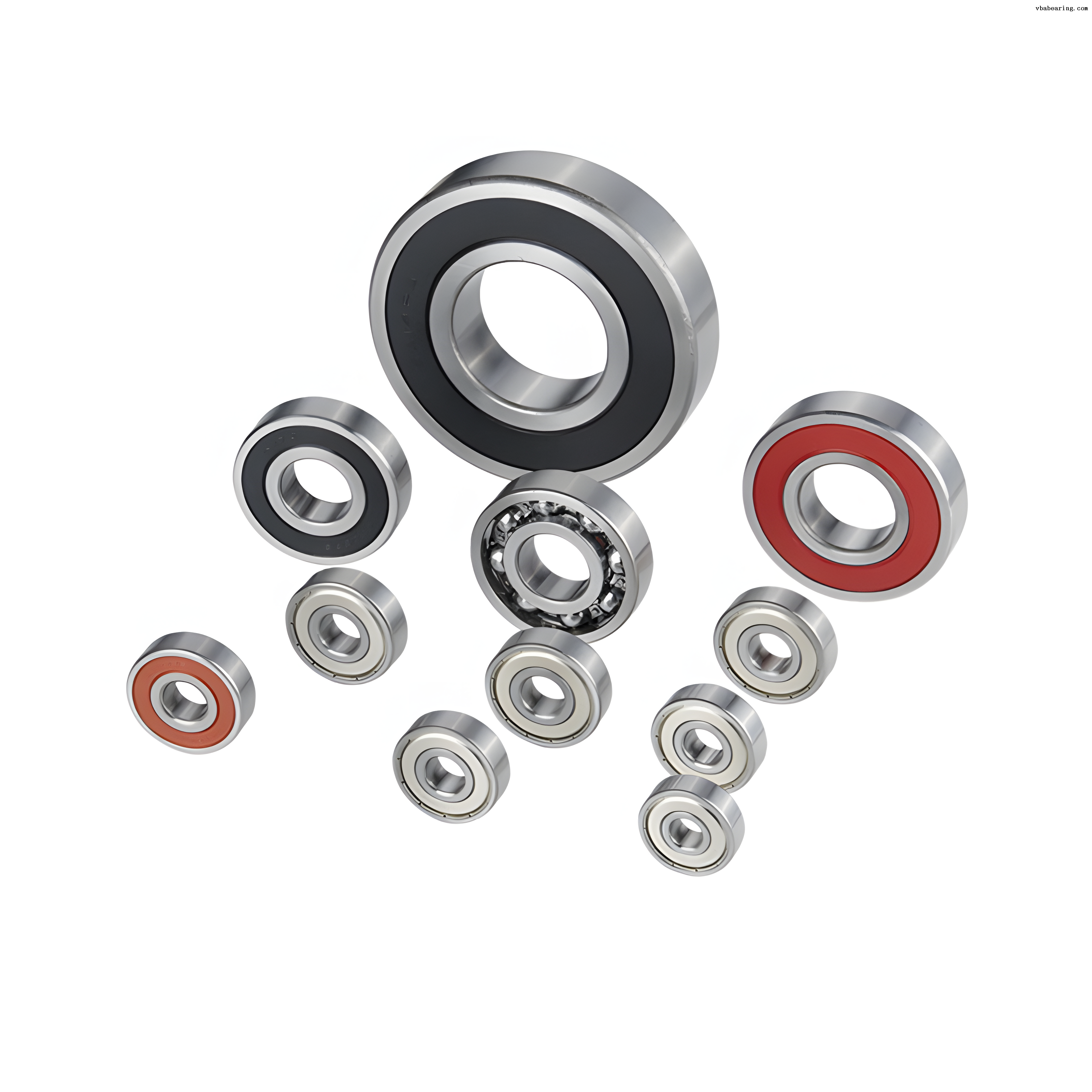

Environmental protection extends beyond base materials. You must also evaluate physical closures. Open designs require active, continuous lubrication systems. Shielded designs use metal plates to keep out large debris. They offer lower friction than rubber seals. Sealed designs use contacting rubber lips. They are completely maintenance-free and provide the highest contamination protection. However, the rubber contact generates slightly higher friction and heat.
Best Practice: Always select a sealed design if your operating environment contains excessive dust, powder, or liquid splashing. The minor increase in friction is worth preventing catastrophic contamination.
Even perfectly specified components fail if poorly implemented. You must understand how external factors destroy precision geometries. Recognizing these risks early allows you to build proper mitigation strategies into your maintenance protocols.
Lubrication realities dictate component lifespan. Over 50% of all bearing failures remain strictly lubrication-related. Applying the wrong grease type causes rapid chemical breakdown. Over-greasing is surprisingly common and equally destructive. Pumping too much grease into a cavity causes fluid churning. This churning generates massive heat, leading directly to thermal runaway. As temperatures spike, the grease bakes into a solid, starving the rolling elements of lubrication.
Contamination and rough handling present another massive risk. Ball bearings rely on microscopic surface finishes to function smoothly. Introducing microscopic debris during installation reduces operational life exponentially. A single grain of sand trapped in a raceway acts like an abrasive grinding wheel. Mechanics must maintain absolute cleanliness when pressing these components onto shafts or into housings.
Misalignment destroys precision components quickly. High-precision units, such as those rated ABEC 7 or 9, require perfect mounting surfaces. Cascading failures occur when you pair a high-precision bearing with a poorly machined shaft. The bearing attempts to correct the shaft's runout, absorbing massive unintended stresses.
We must operate on a transparent assumption regarding precision ratings. Buying a higher ABEC-rated unit does not inherently make your system better. The surrounding infrastructure must support that exact tolerance. If your housing is slightly out of round, an ABEC 9 component will fail just as quickly as a cheaper alternative.
Moving from theory to procurement requires a disciplined, step-by-step approach. Guessing leads to budget overruns and timeline delays. Follow this structured shortlisting logic to secure the exact components your project needs.
Define Hard Constraints: Start by documenting all operational limits. You must calculate maximum expected radial and axial loads accurately. Determine your peak RPM requirements. Note the specific operating temperature range. Finally, map out your strict dimensional limits regarding shaft size and housing space.
Calculate L10 Fatigue Life: Never rely on guesswork for component longevity. Use established dynamic load ratings to forecast lifespan. The L10 fatigue calculation predicts how many hours 90% of identical bearings will survive under specific loads. This mathematical proof ensures you meet warranty requirements.
Vet Manufacturer Authoritativeness: Evaluate your potential suppliers rigorously. Look for current ISO certifications. Demand complete material lot traceability to prevent counterfeit parts. Assess their internal engineering support capabilities. A strong supplier should offer direct access to their application engineers.
Your actionable next step requires direct validation. Do not purchase volume inventory based solely on a catalog number. Request accurate 3D CAD models from the manufacturer. Integrate these models into your digital assemblies. Order physical prototypes for bench testing. Finally, initiate a formal consultation with an application engineer. They will validate your selected series before you commit substantial capital.
You must remember that ball bearings are never simple, commoditized hardware. They function as highly engineered, application-specific mechanical fuses. They protect your larger, more expensive infrastructure from friction and structural fatigue. Treating them as afterthoughts guarantees system instability.
Successful procurement relies heavily on balancing competing technical requirements. You must carefully weigh load capacity against required rotational speeds. You also must balance environmental realities against long-term operational efficiency. Material selection and proper sealing dictate whether a machine runs for ten weeks or ten years.
Take proactive steps to safeguard your next design project. Download detailed technical specification sheets from reputable manufacturers. Use an online load calculator to run your L10 fatigue life numbers mathematically. Alternatively, contact a dedicated sales engineering team today to schedule a comprehensive project review. Expert validation prevents expensive mistakes before manufacturing begins.
A: Ball bearings use point contact to support lighter loads at extremely high speeds while generating minimal friction. Roller bearings use line contact (cylinders) to support massive, heavy loads. They operate at much lower speeds because their larger contact area generates significantly more friction and heat.
A: The ABEC scale measures dimensional tolerance and manufacturing precision, not load capacity or base material quality. For standard industrial motors, ABEC 1 or 3 is usually sufficient. Higher ratings (ABEC 7 or 9) are strictly reserved for ultra-high-speed, precision applications like CNC spindles or aerospace instruments.
A: Standard deep groove designs can tolerate minor axial forces. However, if your system generates significant axial thrust, you must specify an angular contact bearing or a dedicated thrust bearing. These specialized designs contain modified raceways engineered specifically to handle strong forces pushing parallel to the shaft.
A: Premature failure almost always stems from a triad of common errors. First, lubrication breakdown (over-greasing or wrong grease type) causes thermal runaway. Second, microscopic contamination during installation destroys internal raceways. Finally, overloading or shaft misalignment causes rapid metal fatigue and severe raceway deformation.
