In the world of automotive maintenance and parts sales, the wheel hub bearing (also known as wheel bearing, hub bearing, or wheel hub assembly) is a critical component for vehicle safety and performance. If you're searching for “what is a wheel hub bearing,” “wheel hub bearing types,” or “wheel hub bearing applications,”this comprehensive guide provides clear explanations.
A wheel hub bearing is a precision-engineered component that connects the wheel to the axle or suspension knuckle. It allows the wheel to rotate smoothly with minimal friction while supporting the vehicle's weight and handling radial (perpendicular) and axial (side-to-side) loads from acceleration, braking, and cornering.
Modern wheel hub bearings are often pre-assembled units (hub assemblies) that include bearings, seals, flanges, and sometimes ABS wheel speed sensors. They reduce vibration, improve ride comfort, and ensure safe steering. A failing bearing can cause humming noises, vibrations, or even wheel detachment in extreme cases.
Passenger Cars & SUVs — Front-wheel-drive (FWD) vehicles often use Gen 1–3 bearings on front hubs; rear-wheel-drive (RWD) or AWD models use them on all wheels. Common in models like Ford Fiesta/Focus, Toyota Corolla, VW Golf, etc.
Commercial & Heavy-Duty Vehicles — Trucks, vans, and trailers require high-load tapered roller or cylindrical bearings for durability under heavy weights.Electric Vehicles (EVs) — Modern EVs like Tesla use advanced sealed bearings for low noise, high efficiency, and extended range.
Motorcycles, Bicycles & ATVs — Smaller sealed ball bearings for smooth rotation in hubs.
Industrial Applications — Conveyors, agricultural machinery, and railway wheels use specialized bearings for heavy loads and harsh environments.
Global demand for wheel hub bearings continues to grow with rising vehicle production and EV adoption.
Wheel hub bearings are classified by design generations (most common in automotive) and rolling element types.
By Generations (Automotive Hub Units）

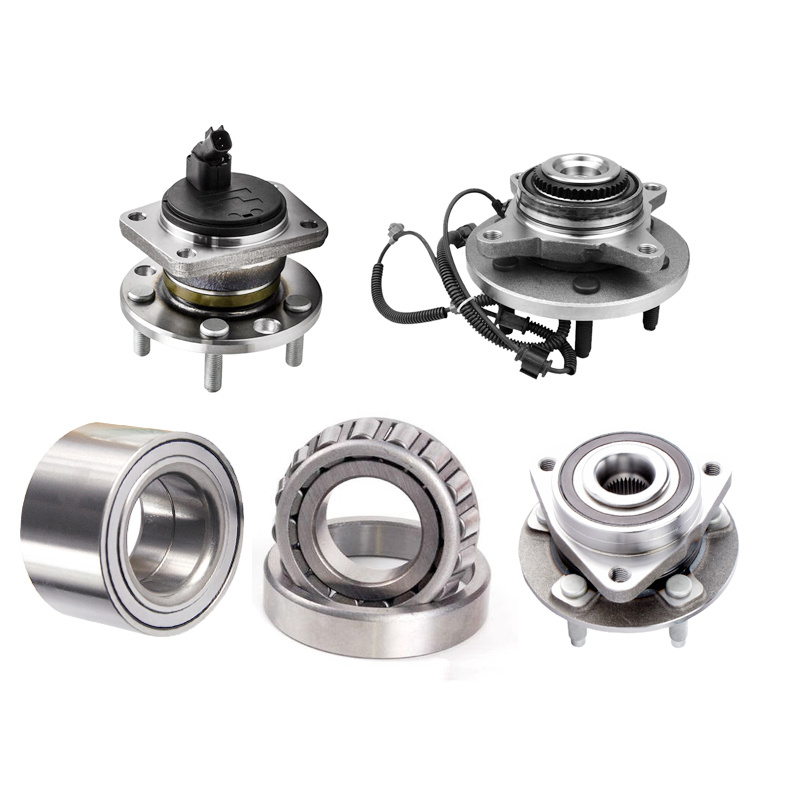

Generation 1 (Gen 1) — Compact, sealed double-row ball bearing unit (cartridge style). Pressed into the knuckle/hub. Simple, cost-effective, but requires careful installation.
Generation 2 (Gen 2) — Integrated flange on one side for easier bolt-on mounting. Often used on non-driven wheels; includes optional ABS sensor ring.
Generation 3 (Gen 3) — Fully integrated unit with hub, bearing, flange, and often CV joint + ABS sensor. Bolt-on design for driven wheels; highest precision and durability.

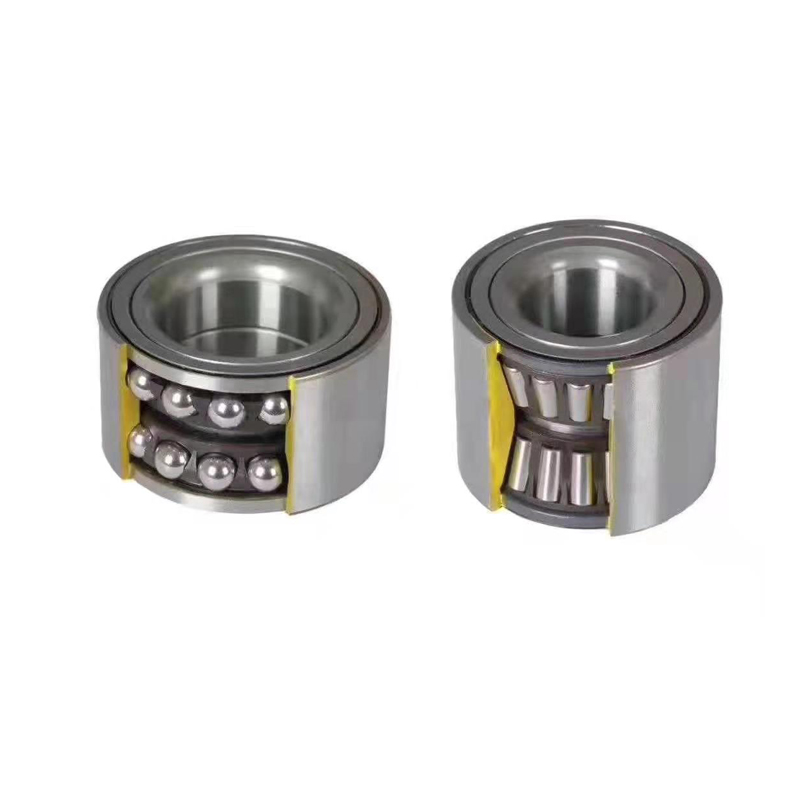

Ball Bearings — Angular contact or deep groove balls; ideal for high speed, lower load applications (common in passenger cars).
Tapered Roller Bearings — Handle high radial and axial loads; used in heavy-duty trucks and older vehicles (adjustable preload).
Cylindrical / Straight Roller Bearings — Excellent for pure radial loads; found in sealed hubs or repackable applications.
Needle Roller Bearings — Compact for high loads in limited space (e.g., some industrial or motorcycle hubs).
Choose based on vehicle type: Gen 3 for modern cars, tapered rollers for trucks.
Listen regularly for unusual noises: humming, growling, or rumbling from the wheels, especially during turns, low speeds, or deceleration—early sign of wear.
Check for vibrations or play: steering wheel shimmy at speed, loose steering feel, or uneven tire wear—inspect immediately.
Visual check: Jack up the wheel and shake it (up/down, side-to-side); noticeable play or noise indicates failure.
Feel for heat: After long drives, touch the hub—if one is noticeably hotter, the bearing may be failing.
Sealed bearings: No greasing needed; inspect every 10,000–20,000 km or during major services.
Serviceable older bearings (some trucks/classic cars): Repack/check every 30,000–50,000 km (per manual).
General rule: Full inspection every 50,000–80,000 km; consider replacement around 85,000–150,000 km depending on driving conditions.
