Premature drivetrain component failure causes severe headaches in the shop. Mechanics hate dealing with Noise, Vibration, and Harshness (NVH) comebacks after a suspension job. Failing components also introduce major safety liabilities on the highway. Navigating the aftermarket for replacement parts requires strict attention to detail. Mismatched tolerances, poor metallurgy, and incorrect drive configurations cause rapid degradation. You need to know exactly what you are bolting onto the knuckle before the vehicle leaves the bay. The assembly sits buried behind the wheel, brake caliper, and brake rotor. This labor-intensive access means you must get the part right the first time. Nobody wants to tear down a rusted suspension twice. We use a strict technical framework for evaluating and selecting the correct wheel hub bearing. This framework relies on identifying the vehicle generation, understanding drivetrain architecture, and demanding strict OE-equivalent specifications.

• Selection must align strictly with the vehicle’s original bearing generation (Gen 1, Gen 2, or Gen 3) to ensure proper fitment, structural integrity, and trouble-free installation.

• Drive configuration (FWD, RWD, AWD) dictates whether the automotive bearing must accommodate a driven axle or operate as a free-spinning unit.

• Premium selection relies on evaluating three critical sub-components: raceway metallurgy, advanced sealing mechanisms, and integrated ABS magnetic encoder accuracy.

• Improper installation techniques, such as incorrect axle nut torque or improper press procedures, will destroy even the highest-quality bearing prior to road use.

Defining Success Criteria for Wheel Hub Bearing Replacement

A successful replacement requires achieving zero radial play at the wheel hub. It requires completely restoring the factory NVH baseline so the driver feels no floorboard vibrations. The new unit must also transmit perfectly accurate wheel speed sensor data to the vehicle computer. Achieving these metrics requires strict attention to mechanical detail. Visual similarities mean nothing. You must verify the engineering specifications against the factory service manual.

Matching physical dimensions like inner diameter, outer diameter, and width is only the baseline requirement. Selecting the correct type requires matching internal load capacities and specific drive configurations. A unit designed for a compact sedan will physically shatter under the weight of a heavy-duty pickup truck. You must understand common failure modes to establish what a new component must withstand. Spalling occurs when surface material flakes away from the raceways under heavy, continuous loads. Brinelling leaves permanent indentations on the metal from severe impact shocks like potholes. Seal degradation allows moisture and abrasive grit to destroy the internal lubrication.

A proper replacement part resists these specific mechanical failures through superior engineering. Non-negotiable requirements include exact flange runout tolerances measured with a dial indicator. Excessive runout causes brake rotor wobble, leading to severe brake pedal pulsation. The unit must also offer secure mounting compatibility with the steering knuckle and brake rotor. Every bolt hole must align perfectly without forcing or cross-threading the fasteners. If the mounting surfaces are not perfectly machined, the entire suspension geometry suffers.

Before condemning an existing unit and ordering a replacement, mechanics must perform a strict diagnostic verification sequence to confirm the failure:

1. Elevate the vehicle on a two-post lift to unload the suspension components completely.

2. Grasp the tire at the 12 o'clock and 6 o'clock positions, applying alternating push-pull pressure to check for internal radial play.

3. Spin the wheel by hand while holding a mechanic's stethoscope against the steering knuckle to listen for internal grinding or roaring noises.

4. Remove the wheel and brake caliper, then mount a dial indicator to the knuckle to measure the exact lateral runout of the hub flange.

Categorizing Automotive Bearing Types by Generation

Vehicle manufacturers utilize three distinct generations of wheel assembly designs. You must identify the correct generation for your specific application before ordering parts. Attempting to retrofit a different generation is mechanically impossible.

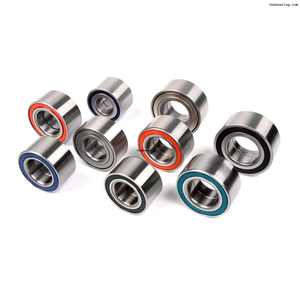

Generation 1 (Gen 1): Conventional Double-Row Angular Contact Bearings

Generation 1 units feature two rows of ball or tapered rollers housed in a single outer ring. They utilize a highly compact double-row design to save space within the steering knuckle. You will typically find these conventional units in older vehicles or modern compact cars. Installation requires pressing the unit directly into the steering knuckle using specialized equipment. You must then press the separate steel hub into the center of the unit.

This process is highly labor-intensive and requires significant mechanical skill. Removing and pressing bearing races off a conventional car or truck wheel hub requires a heavy-duty 20-ton hydraulic shop press. Using a hammer or makeshift tools will destroy the new component instantly. You must use precise adapter cups to apply pressure only to the correct steel race. Mechanics must allocate significant shop time for Gen 1 replacements due to the complex teardown, snap ring removal, and pressing procedures.

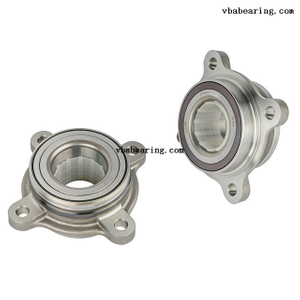

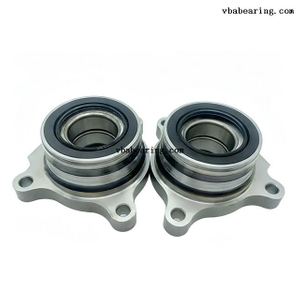

Generation 2 (Gen 2): Integrated Flange Design

Generation 2 units advance the design by featuring a built-in steel flange. This flange sits on either the outer ring or the inner ring of the assembly. An outer ring flange mounts directly to the vehicle suspension components. An inner ring flange mounts directly to the brake rotor and wheel assembly. These units are highly common in free-spinning, non-driven wheels on passenger cars.

The integrated design completely eliminates the need for a separate hub component. This reduces the overall parts count and simplifies the supply chain. Gen 2 units still retain some press-fit requirements during the installation process. You must carefully press the non-flanged side into the steering knuckle. Precision remains critical, as uneven pressing forces will distort the internal raceways and cause premature failure.

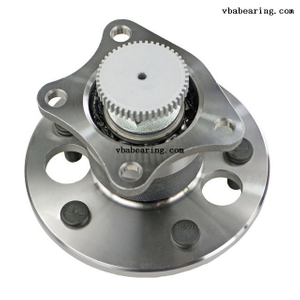

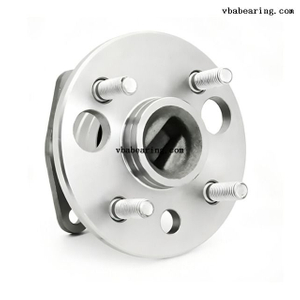

Generation 3 (Gen 3): Fully Integrated Hub Assemblies

Generation 3 represents the modern standard for automotive manufacturing. These advanced units feature two distinct mounting flanges integrated into a single assembly. One flange secures directly to the wheel and brake rotor. The other flange secures directly to the suspension knuckle. They arrive from the factory pre-lubricated, pre-sealed, and pre-set for precise internal preload.

You will find Gen 3 assemblies on modern driven and non-driven wheels across all vehicle classes. The bolt-on installation minimizes human error and drastically reduces labor time in the shop. Mechanics simply unbolt the old unit and bolt the new one in place. This design eliminates the need for a hydraulic shop press entirely. You must still clean the knuckle mating surface thoroughly to prevent alignment issues. Many Gen 3 units utilize torque-to-yield mounting bolts that require replacement during every service interval.

Technical Evaluation Criteria for Wheel Hub Bearings

Evaluating a replacement unit requires looking closely at the internal engineering. Internal component quality dictates the lifespan and safety of the part. Visual appearance tells you nothing about the metallurgical integrity hidden inside.

Metallurgy and Heat Treatment

Raw material quality determines the structural integrity of the entire assembly. Manufacturers must use high-carbon chromium steel, such as SAE 52100, for the raceways and rolling elements. This specific alloy prevents premature metal fatigue under continuous rotational stress. Low-grade steel will warp and crack under the intense heat generated by highway driving. You must demand certified steel grades when selecting replacement parts.

Localized induction hardening on the mounting flanges is equally critical. This targeted heat treatment maintains structural rigidity under severe cornering loads. Soft, untreated flanges will flex when the vehicle takes a sharp turn. This flex causes brake rotor runout, leading to brake pedal pulsation and uneven pad wear. High-quality manufacturers provide documentation proving their induction hardening depths meet factory specifications.

Sealing Technology and Lubrication

Environmental contamination destroys internal components faster than heavy payload stress. Multi-lip cassette seals play a vital role in preventing moisture and abrasive ingress. This protection is absolutely mandatory in high-corrosion environments dealing with road salt and heavy rain. A single-lip seal will fail quickly, allowing water to mix with the internal grease. Advanced seals utilize FKM (Viton) materials rather than basic NBR (Nitrile) to withstand extreme brake heat without melting or deforming.

Internal lubrication also requires strict technical evaluation. The unit needs application-specific, high-temperature synthetic grease applied at the factory. Standard lithium grease breaks down under heavy braking loads, leading to rapid friction failure. Premium synthetic grease maintains its viscosity across extreme temperature ranges. It ensures the rolling elements remain fully lubricated during sub-zero winters and scorching summer road trips. The grease must possess a high drop point to prevent liquefaction during heavy towing.

ABS Integration and Sensor Accuracy

Modern vehicles rely entirely on wheel speed data for critical safety systems. The active magnetic encoder ring is often integrated directly into the internal seal. This ring sends continuous rotational data to the Anti-lock Braking System and Traction Control System. The vehicle computer uses this data to prevent wheel lockup during emergency stops. Mechanics must use an oscilloscope or advanced scan tool to verify the square wave signal output of these active sensors.

Low-tier aftermarket parts frequently suffer from poor magnetic pole spacing on the encoder ring. This manufacturing inaccuracy causes erratic ABS engagement when braking normally. It will also trigger persistent dashboard fault codes that fail state safety inspections. You must verify encoder accuracy and sensor compatibility before beginning the installation. A faulty sensor ring renders the entire new assembly completely useless.

Matching Bearing Specifications to Vehicle Drivetrains

Drivetrain architecture dictates the physical forces applied to the wheel assembly. You must match the component to these specific directional forces. A mismatch here guarantees catastrophic mechanical failure.

Front-Wheel Drive (FWD) Considerations

Front assemblies in FWD systems serve a highly demanding dual-role. They must support the entire front-end vehicle weight, including the heavy engine block. Simultaneously, they transfer driving torque to the pavement and accommodate sharp steering angles. This combination of vertical, lateral, and rotational stress requires incredibly robust internal construction.

Driven wheels require splined inner rings for Constant Velocity (CV) axle integration. The internal splines must mesh perfectly with the outer axle shaft. If the spline count is incorrect, the axle will not slide into the hub. If the splines are poorly machined, the connection will suffer from driveline clunking during acceleration. Always count the splines on the old unit before installing the new one. Pay close attention to the axle nut retention method, whether it uses a staked collar or a traditional cotter pin.

Rear-Wheel Drive (RWD) Considerations

RWD configurations separate the steering and driving forces between the front and rear axles. Driven rear wheels require heavy-duty assemblies to handle massive engine torque. These rear units often utilize large, robust rolling elements to prevent torque-induced deflection. They must withstand the sudden shock of hard acceleration without internal binding.

The front wheels on a RWD vehicle are free-spinning and non-driven. They only handle steering and weight support duties. These front positions often utilize Gen 2 units or traditional spindle-mounted tapered roller setups. Because they lack a drive axle, the center of the hub remains solid or features a simple dust cap. You must never install a driven-style hub on a free-spinning axle.

AWD/4WD and Heavy-Duty Applications

All-wheel drive and four-wheel drive systems place maximum mechanical stress on every single wheel position. These applications require larger rolling elements and significantly increased radial load capacities. The automotive bearing must handle severe off-road stress, including mud, water fording, and rock crawling. Standard passenger car units will fail immediately in these conditions.

Heavy-duty trucks also demand specialized components. The assembly must support larger tire diameters and significantly higher unsprung weight. Upgraded internal components are mandatory for lifted trucks hauling heavy trailers. Manufacturers often increase the flange thickness and utilize oversized ball bearings for these specific applications. Always verify the weight rating of the replacement part for heavy-duty vehicles.

OE Quality vs. Economy Aftermarket: Evaluating Mechanical Value

Selecting parts based on initial acquisition metrics leads to disastrous results in drivetrain repair. You must evaluate the total lifecycle value of the component. Economy replacements carry massive hidden penalties that quickly drain shop resources and frustrate vehicle owners.

The Hidden Penalties of Economy Parts

Economy replacements suffer from frequent replacement cycles due to inferior raw materials and poor quality control. Every premature failure multiplies your labor hours and increases vehicle downtime. Tying up a service bay three times to replace the same failing component destroys shop efficiency. Installing a premium part once guarantees the vehicle stays on the road.

A failing unit creates excessive vibration throughout the chassis. This vibration travels through the steering knuckle and causes severe damage to adjacent suspension components. Ball joints, tie rod ends, and CV axle joints will all suffer accelerated wear. Utilizing low-tier aftermarket parts often leads to extensive collateral suspension damage.

Verifying OE Specifications for Trouble-Free Installation

You need a strict framework for identifying true OE-quality replacement parts. Look for manufacturers holding active ISO/TS 16949 certification for automotive quality management. Demand verifiable runout testing data from the manufacturer's quality control department. Ensure the unit matches factory preload specifications perfectly right out of the box.

OE quality parts perfectly match the vehicle's make, model, and specific trim level. This precise engineering ensures proper and trouble-free installation every single time. The bolt holes will align perfectly, the ABS sensor will plug in seamlessly, and the axle nut will torque down smoothly. Never compromise on dimensional accuracy when dealing with critical suspension components.

Lifecycle Expectations and Reliability

Compare the expected mileage lifespan of premium assemblies versus economy alternatives. A premium unit utilizes high-carbon steel and advanced seals, easily lasting over 100,000 miles under normal driving conditions. An economy unit utilizing soft steel and single-lip seals might fail at 20,000 miles. You must calculate the true mechanical value over the vehicle's lifespan.

Factor in the repeated labor hours, alignment procedures, and potential towing requirements associated with economy parts. Premium units always provide superior mechanical reliability. Reputable manufacturers back their premium lines with robust, long-term guarantees. This coverage provides peace of mind and protects the repair against rare manufacturing defects.

Implementation Risks and Installation Realities

Even the highest quality component engineered to exact tolerances will fail immediately if installed incorrectly. Strict adherence to mechanical procedures is non-negotiable in the shop. Installation errors account for the vast majority of premature failures.

Inspecting Adjacent Components

Accessing the hub requires removing the brake caliper, caliper bracket, and brake rotor. Use this necessary teardown opportunity to inspect these adjacent components thoroughly. Check the steering knuckle bore for heavy rust, scoring, or physical damage. A damaged or heavily corroded knuckle will compromise the new bearing alignment and prevent a flush fit.

Ensure the caliper slide pins move freely and the rotor surface is clean. Clean the knuckle mating surface with a wire brush to remove all rust scale. Apply a thin layer of anti-seize compound to the knuckle bore to prevent future corrosion bonding. Taking ten extra minutes to prep the surrounding area guarantees a professional, long-lasting repair.

Torque Specifications and Bearing Preload

Axle nut torque is the single most critical step in the entire installation process. Over-torquing or under-torquing the axle nut directly alters the internal preload of the assembly. Incorrect preload leads to immediate catastrophic failure by crushing the internal rollers or allowing excessive radial play. You must look up the exact torque specification for your specific vehicle.

You must use a calibrated torque wrench to achieve this specification. Never use an air impact gun or electric impact wrench to tighten an axle nut. Impact tools deliver violent, immeasurable force that instantly destroys the internal raceways. Follow a strict torquing sequence to ensure proper seating:

1. Thread the new axle nut onto the CV shaft by hand to prevent cross-threading.

2. Snug the nut lightly with a standard ratchet while the vehicle is still elevated to seat the splines.

3. Lower the vehicle until the tire just touches the ground to prevent wheel rotation.

4. Tighten the nut smoothly in one continuous motion with a calibrated torque wrench until it clicks.

5. Stake the collar of the nut into the CV axle groove using a punch and hammer, if required by the manufacturer.

Press-Fit Mitigation Strategies (Gen 1 & 2)

Pressing a Gen 1 or Gen 2 unit requires extreme care and specialized hydraulic equipment. You must never apply pressing force to the wrong race. Pressing the hub into the center by supporting the outer race transfers massive force directly through the rolling elements. This critical mistake causes micro-brinelling, leaving deep dents in the raceways.

This damage destroys the unit before the vehicle ever leaves the garage. The driver will immediately hear a loud grinding noise on the first test drive. Always use the correct adapter cups to support the specific race you are pressing against. If you lack the proper press tools, take the knuckle to a professional machine shop.

Protecting the ABS Encoder

The magnetic encoder ring integrated into modern seals is highly fragile. Magnetic damage during installation is a frequent and frustrating problem. Keep the unit far away from magnetic tools, heavy steel workbenches, and metallic debris. A scratched, dented, or demagnetized encoder ring will render the entire ABS system useless.

Handle the unit with clean hands and leave it in the protective box until the exact moment of installation. Do not set the assembly face-down on a dirty shop floor where it can pick up metal shavings. If the magnetic ring picks up iron dust, the sensor cannot read the pole spacing correctly. Treat the assembly like a fragile electronic component until it is safely bolted to the vehicle.

Conclusion

1. Consult the factory service manual to verify exact part numbers, generational requirements, and drive configurations before ordering parts.

2. Review specific removal procedures for brake calipers and rotors to prevent collateral damage during the teardown phase.

3. Procure a calibrated torque wrench and look up the exact factory torque specifications to ensure precise axle nut installation.

4. Inspect and thoroughly clean the steering knuckle bore and CV axle splines with a wire brush before pressing or bolting the new assembly into place.

FAQ

Q: What is the difference between a wheel bearing and a wheel hub assembly?

A: A traditional unit is a standalone internal component with steel races and rolling elements requiring a shop press for installation. A hub assembly is a pre-packaged, fully integrated unit containing the internal rolling elements, mounting flanges, and wheel studs in one complete, bolt-on piece.

Q: How do I know if my vehicle requires a Gen 1, Gen 2, or Gen 3 bearing?

A: You must consult your vehicle's service manual or a professional parts catalog. Older vehicles typically use Gen 1 press-in units. Modern non-driven wheels often use Gen 2. Most modern passenger vehicles utilize Gen 3 fully integrated bolt-on assemblies for both front and rear positions.

Q: Can I replace just the automotive bearing race, or do I need the entire hub assembly?

A: For Gen 1 setups, you can replace the internal components using a hydraulic shop press. For Gen 2 and Gen 3 units, the races are machined directly into the mounting flanges. You cannot service them internally. You must replace the entire integrated hub assembly.

Q: What is the difference between a driven bearing and a free-spinning bearing?

A: A driven unit features a splined inner center designed to accept a CV axle. This transfers engine torque to the wheels. A free-spinning unit lacks internal splines. It simply supports the vehicle's weight while allowing the wheel to rotate freely on non-driven axles.

Q: Why is my ABS light on after replacing the wheel hub bearing?

A: An illuminated ABS light usually indicates a problem with the magnetic encoder ring. The ring may have suffered damage from magnetic tools during installation. You might have installed the unit backward. The replacement part might also have incorrect magnetic pole spacing that the computer cannot read.

Q: What happens if I do not torque the axle nut to factory specifications?

A: Failing to achieve exact factory torque alters the internal preload of the rolling elements. Under-torquing allows excessive radial play. Over-torquing crushes the internal components. Both scenarios cause rapid overheating, severe micro-brinelling, and catastrophic mechanical failure within a few hundred miles.
